Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Jofee, Morak
  • Model Number: MK
  • Theory: Diaphragm pump
  • Structure: Diaphragm Pump
  • Usage: chemical, oil etc
  • Power: Pneumatic
  • Standard or Nonstandard: Standard
  • Fuel: Air operated
  • Pressure: Low Pressure
  • Application: chemical, oil etc
  • Air valve: Pilot type
  • Plastic pump connection: Flange

Packaging & Delivery

Packaging Details: Carton with foam packing
Delivery Detail: According to quantity

Specifications

1. Actual dry suction: 4~7m.
2. Precision casting, smooth surface
3. Longer diaphragm life.
4. Reliable and durable

Looking for agent or distributor of worldwide

Jofee's CE diaphragm pump are much different with other China's diaphragm pump for well mannfactured, well seal and good dry suction. The max pressure can reach to 16 bar. Following pump properties of our CE diaphragm pump.
  • High roundness valve ball for use the ball mill machine, enhance check valve seal.
  • Fluid chamber and manifold adopt four bolts connection, Strong and good dry suction. The actual dry suction can reach to 4~7m
  • Three section manifold, Flexible installation and even can change to be four ports pump.
  • Longer diaphragm life. Raw material from Dopont, Exxon. Dakin.
  • Aluminum pump and stainless steel pump adopt precision casting, smooth surface.
  • Plastic pump adopt flange connection, stronger than thread connection.
Wetted body: PP, PVDF, POM, SS304/316, Aluminum etc.
Diaphragm: PTFE, Hytrel / Buna-N, Santoprene / EPDM, Viton etc.

ModelSizeMax flow (L/min)Max head (m)Max inlet air pressure (bar)Suction lift (m)Max particle (mm)
DryWet
MK151/2"57848.447.62.5
MK203/4"57848.447.62.5
MK251"157848.4484
MK401.5"358848.4585
MK502"587848.4586
MK803"1060848.4589.4

Jofee's Stainless Steel Pump
  • High temperature wax casting, heat treatment and shaping processing. Smooth surface and good appearance.
  • Liquid chamber and manifold adopt 4 bolts connection. Good seal, the actual dry suction can reach to 4~7m.
  • Origin stainless steel color. The pump surface adopt pickling and electrolytic processing.
  • Jofee supply stainless steel 304 /316 pump from 1/2" to 3".
  • The bolts of stainless steel pump are of Stainless steel 304.

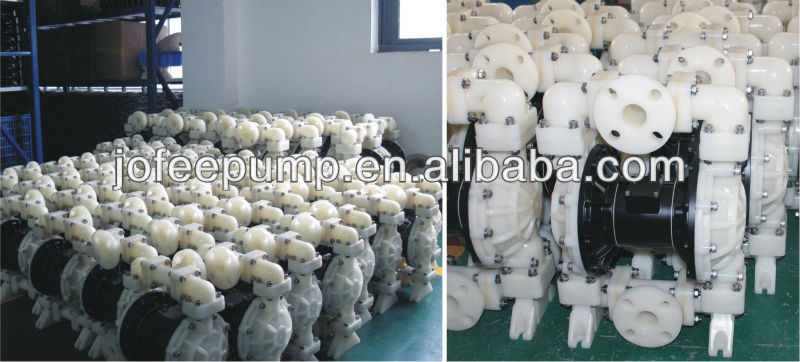

Jofee's Plastic Pump
  • Three section manifold, Flexible installation. Can change to be 4 ports pump.
  • Enhanced structural strength, the plastic pumpbody is durable.
  • Solid flange connection, strong and durable.
  • Raw material is PP-H which low temperature resistance, high temperature resistance, chemical resistance, wearing resistance better than PP.
  • Liquid chamber and manifold adopt 4 bolts connection. Good seal and good dry suction.
  • The bolts of plastic pump are of Stainless steel 304.
  • Jofee can supply PP-H pump and PVDF pump from 1/2" to 3".
Jofee's Aluminum Pump
  • Aluminum material grade is A356.
  • Pump adopt precision casting, smooth surface.
  • Three section manifold, Flexible installation. Also can change to be 4 ports pump.
  • Liquid chamber and manifold adopt 4 bolts connection. Good seal and good dry suction.
  • Bolts of aluminum pump are of stainless steel 202.
  • Jofee supply aluminum pump from 1/2" to 3".
  • Enhanced structural strength, the aluminum pumpbody is durable.
Jofee's diaphragm plate
  • Aluminum plate and stainless steel plate adopt unibody design, can avoid the leakage from the bolts hole.
  • Plasitc plate increase the plastic part thickness, insert with metal sheet, strong and durable.

The diaphragm plate of other manufacturers. Usually are metal plate with a bolt. Their plastic plate no insert with metal plate, no strong enough, under high working pressure may crack.

Jofee's Valve Ball

  • Raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin.
  • Ball adopt ball grinding machine to process, in high roundness. Can enhance the pump seal and reduce air consumption.
Jofee's Diaphragm Rod
  • Material grade is Stainless steel 321, in good wearing resistance, chemical resistance and good self-lubricating.
  • The rod surface adopt Grinding process, low coefficient of friction.
  • Rod's end to be smooth small fillet, will not cut V-ring.
Most other manufacturer. Their valve ball not in high roundness. Their diaphragm rod material grade lower than SS321. If liquid into air valve, very easily cause the diaphragm rod been corroded.

Jofee's air valve
  • Pilot air valve, no dead point and no need lubrication.
  • Stainless steel valve plate adopt surface grinding process, low coefficient of friction.
  • The plastic parts of air valve adopt improved acetal material which in excellent wearing resistance, low coefficient of friction, good self-lubricating. Good toughness and rigidity.
